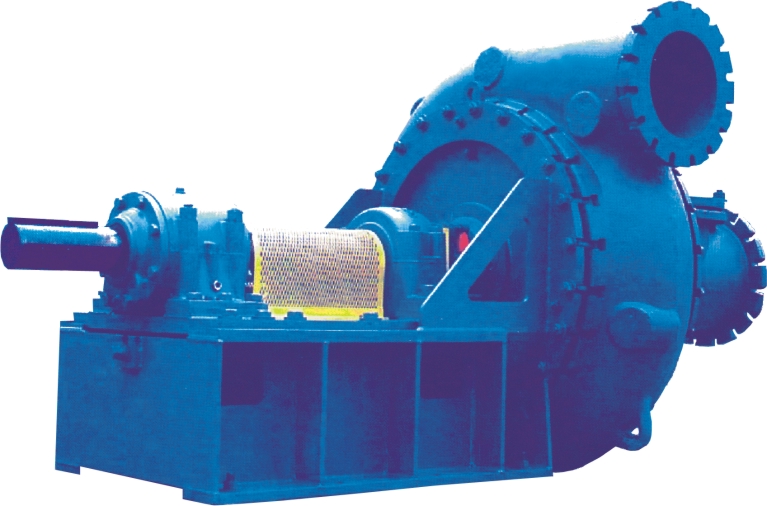

Horizontal Slurry Pumps

CONSTRUCTIONAL FEATURES

  • End suction top discharge back pullout design
  • Front pullout design (optional)
  • Expeller ring type design
  • Adjustment of impeller on front and back side
  • Twin Casing Design (optional).
OPERATING DATA

Capacity: upto 1000 m3/hr
Head: upto 40 mtrs
Speed: up to 3000 rpm
Temperature: up to 80°C



MATERIALS COMBINATION

NI- HARD/High Cr. Alloy CI.

.



.

APPLICATION

Mining & mineral processing, Highly abrasive slurries, Dredging & Trailings, Cyclone feed, Industrial processing, Coal & Power plant ash handling, Pulp & paper/ Lime slurry/ Alumina/Fertilizer/ Magnetic pulp/ Ferro silicon pulp/ Sand & gravel water mixtures etc.
